WEKA Boxcooler
Featured WEKA Protector Type T and WEKA GUARD
Exclusive to WEKA Boxcoolers are the WEKA Protector Type T and WEKA Guard. This equipment helps to minimize potential damage to the units and hull from stray electrical currents and galvanic corrosion. The WEKA Protector Type T also allows the copper-nickel to maintain its anti-fouling capabilities, protecting the tubes from marine growth.
Material Options

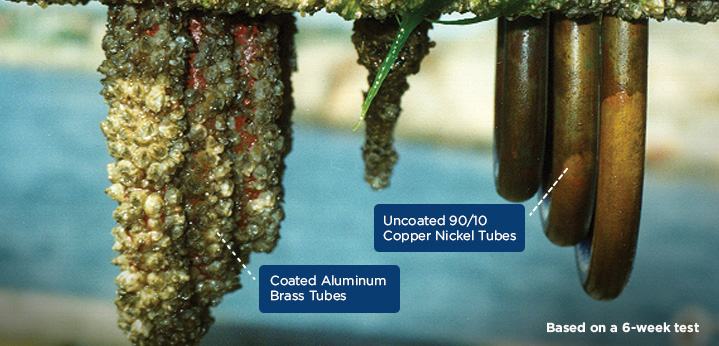

WEKA Boxcoolers are constructed using uncoated 90/10 copper-nickel tubing.
This alloy does not require a protective coating or ICAF (Impressed Current Anti-Fouling) system due to its inherent corrosion resistance to seawater and natural anti-fouling capabilities. To protect the uncoated boxcoolers against potential stray current corrosion, a WEKA GUARD and WEKA Protector Type T system is applied. This exclusive design is successfully utilized in hundreds of vessels in fresh and saltwater applications worldwide.
Configuration Options
Single or Multiple Heat Sources
A boxcooler can be designed to support single or multiple heat sources with one unit.
Contact our sales and engineering team for expert advice on cooler sizing, placement, installation, and service.
Applications
R.W. Fernstrum & Company has partnered with WEKA Marine B.V. to manufacture and sell copper-nickel boxcoolers to the North and South American Markets. The WEKA Boxcooler® has been successfully utilized for vessels operating in icy, sandy, or debris laden water. Learn more about WEKA Boxcoolers.
Commercial Applications
- Barges
- Dredges
- Cargo Ships
- Carriers
- Ferries
- Ice Breakers
- Commercial Fishing Vessels
- OSV
- PSV
- Tankers
- Tugs
In the box cooling. Out of the box thinking.
R.W. Fernstrum & Company has partnered with WEKA Marine to manufacture and sell boxcoolers, providing customers with the latest cooling solutions. The WEKA Boxcooler® is a compact, closed circuit cooling system that is mounted in a sea chest within the confines of the vessel’s hull, offering excellent protection from submerged obstacles.
Contact our sales and engineering team for expert advice on cooler sizing, placement, installation, and service.
Installation Options
Our expert engineers and sales team will help you determine the best installation solution. Please note the operating conditions and hull design of a vessel weigh heavily on how a unit is installed. Described below are a few common installations for a GRIDCOOLER Keel Cooler.
Bottom Mounted Boxcooler
WEKA Boxcoolers have been successfully applied to the bottom mount applications, such as repower projects or when additional equipment requires cooling. In most cases, a boxcooler is installed in a top down fashion by lowering the unit into the mounting frame and welding the unit to the top of the sea chest. In a bottom mount application, a special top sea chest plate is pre-manufactured and secured to the unit’s mounting frame. The entire assembly is lifted from the bottom of the vessel through a hole cut in the hull and sea chest. The boxcooler is then fitted into the top of the sea chest and welded into place.
A boxcooler is installed one of two ways, athwartship or longitudinal.
The sea chest requires careful planning. The inlet and outlet slots of the sea chest must provide a constant flow of seawater over the boxcooler’s tubes. The inlet slots are located at the base of the sea chest and should be positioned transversely to the outlet slots on the side of the sea chest. The outlet slots should be positioned as close to the top of the sea chest as possible. The outlet slots must always remain below the waterline, even when the vessel is in a light draft condition. Please refer to the installation manual for guidelines on slot quantity and sizing.
